Asus TUF GAMING Z490-PLUS WI-FI

Diseño más frío

Disipador térmico grande y de gran masa con una extensa superficie que cubre las áreas VRM y de los chokes. Además, la TUF Gaming X570-Plus (Wi-Fi) incluye unos controles de refrigeración muy completos que se pueden configurar desde Fan Xpert 4 y nuestra premiada UEFI BIOS.

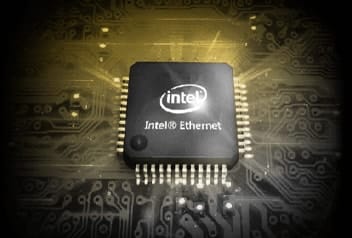

INTEL® ETHERNET

La conexión Ethernet Intel I219-V más reciente reduce la carga de la CPU y ofrece una capacidad de procesamiento TCP y UDP excepcionalmente alta para acelerar las transmisiones de datos.

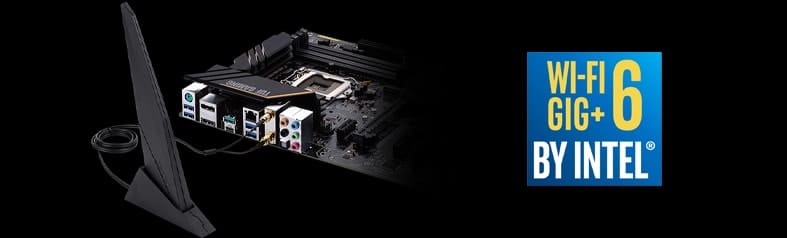

Intel® WiFi 6 AX201

El módulo Intel® Wi-Fi 6 AX201 es compatible con el estándar 802.11ax y soporta un ancho de banda teórico máximo de 2,4 Gbps. Y lo que es todavía más importante para usuarios avanzados, está optimizado para ser más eficiente en redes saturadas de tráfico. Empareja tu placa base con los routers ASUS Wi-Fi 6 para aprovechar todo el rendimiento potencial de Wi-Fi 6.

Placa base ATX para gaming Intel® Z490 (LGA 1200) con M.2, 14 etapas de potencia DrMOS, Intel® WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, puertos USB 3.2 Gen. 2, soporte Thunderbolt™ 3 y Aura Sync RGB

Características:

• Zócalo Intel® LGA 1200: Compatible con la 10.ª Gen. de procesadores Intel® Core™.
• Solución de alimentación optimizada: 12+2 etapas de potencia DrMOS, PCB de 6 capas, tomas ProCool, componentes TUF de grado militar, y Digi+ VRM para extender su durabilidad.
• Refrigeración completa: Disipador VRM, disipador PCH sin ventilador, disipador M.2, conectores híbridos de ventilador y utilidad Fan Xpert 4.
• Conectividad de próxima generación: Conexiones frontales USB 3.2 Gen. 2 de tipo C y Thunderbolt 3™.
• Creada para jugar en línea: Intel® Wi-Fi 6, Intel® Ethernet Connection I219-V, TUF LANGuard y TurboLAN.
• Códec Realtek S1200A: 108 dB de relación señal-ruido en la salida de línea y 103 dB en la entrada de línea.
• Aura Sync RGB: Sincroniza la iluminación LED con un amplio rango de dispositivos compatibles como tiras RGB.

Especificaciones:

• CPU
  • Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list
  • **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Build in Intel® Z490
• Memory
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  • Integrated Graphics Processor
  • 1 x DisplayPort 1.4 **
  • 1 x HDMI 1.4b
  • *Graphics specifications may vary between CPU types.
  • **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Multi-GPU Support
  • Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  • Intel® 10th Gen Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
  • Intel® Z490 Chipset
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 3 x PCIe x1
• Storage
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel® Z490 Chipset :
  • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 5, 10
  • Intel® Rapid Storage Technology supports
  • Intel® Optane™ Memory Ready
• LAN
  • Intel® I219-V 1Gb Ethernet
  • TUF LANGuard
• Wireless Data Network
  • Intel® Wi-Fi 6 AX201
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports CNVI interface
  • Bluetooth
  • Bluetooth v5.1*
  • *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• Audio
  • Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature :
  • - Optical S/PDIF out port(s) at back panel
  • - Audio cover
  • - Audio Shielding
  • - Dedicated audio PCB layers
  • - Premium Japanese audio capacitors
  • * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  • Rear USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • Front USB Port ( Total 6 )
  • 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
  • 1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 1 x USB 2.0 port(s)(2 x Type-A)
  • 1 x USB 2.0 port(s)(1 x Type-A)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Sync
  • AI Suite 3:
  • - Performance And Power Saving Utility
  • Turbo V Evo
  • EPU
  • Digi+ VRM
  • Fan Xpert 4
  • System information
  • - EZ update
  • AI Charger
  • ASUS Turbo LAN
  • DTS Custom for GAMING Headsets
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  • ASUS TUF PROTECTION
  • - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
  • - ASUS Enhanced DRAM Overcurrent Protection
  • - ASUS ESD Guards
  • - TUF LANGuard
  • - ASUS Overvoltage Protection
  • - ASUS SafeSlot
  • - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • - ASUS Q-DIMM
  • - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - ASUS Q-Slot
  • ASUS Thermal Solution
  • - Stylish heatsink
  • ASUS EZ DIY
  • - Procool
  • AURA Sync
  • - Standard RGB headers
  • - Addressable Gen 2 RGB header
• Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x ASUS Wi-Fi Module
• Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
  • 2 x M.2 Socket 3
  • 6 x SATA 6Gb/s connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• Accessories
  • User's manual
  • 1 x ASUS Fan Holder
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x TUF GAMING Sticker
  • 1 x TUF Certification card(s)
  • 1 x Wi-Fi moving antenna
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
